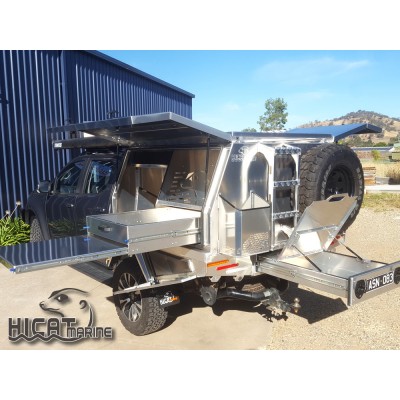

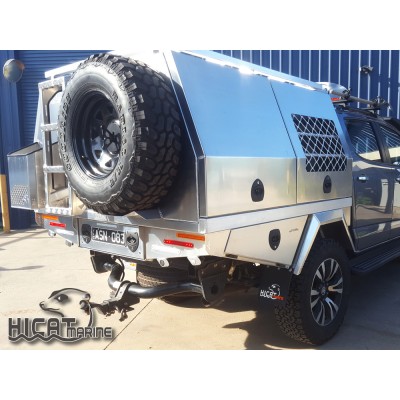

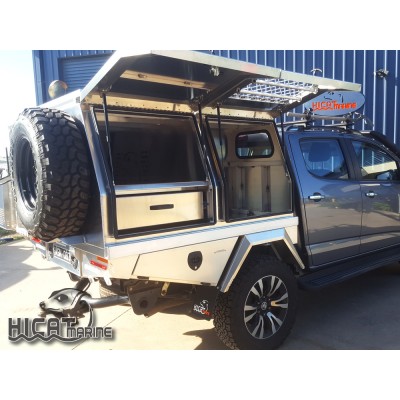

HICAT ‘ROEBUCK’ CHASSIS MOUNT

Standard Features:

• Made in Australia
• Dog Cage. Partitioned dog area. 3rd door with ventilation. Fully welded around the floor. Size (width and depth) of the dog cage is determined by choice of fridge area size.
• Fridge partition (permanent) x3 sizes to suit Clearview ES-100, ES-150, ES-220. Front passenger side. CNC cut ventilation to rest of the canopy. Universal fridge slide mounting system.
• Drawer and incorporated pull out bench- Size determined by fridge partition size. Located in space between the fridge area and rear wall of the canopy on the passenger side. Includes reinforced false floor above the drawer.
• All drawers and pull out benches now come standard with our unique drawer rails, simply push down and pull simultaneously on the drawer rail to unlock and open the drawer.
• A single drawer on the driver's side. Approx. 200mm deep, located in the area between the dog cage and rear wall of the canopy.
• Chassis: 100x50x5 Channel
• Bearers: 50x4 SHS
• Combing Rails: 75x50x4 RHS

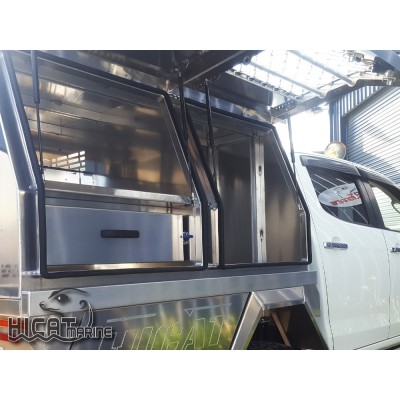

• 3mm 5052 Aluminium canopy, double folded return around the door to create gutter, 40mm Unistrut internal frame, Stainless steel piano hinge
• x2 3mm 5052 Aluminium under tray boxes
• Pinchweld rubber seal
• Die-cast Aluminium hinges
• Adjustable flared guards
• T-Handle compression lock. Made in Sweden.
• Fully enclosed, weatherproof trundle drawer, heavy-duty bearing slides, 1500mm long
• Includes LED taillights and fitting
• Fully welded using TIG and Pulse MIG.
• Modified fuel filler, fabricated from stainless steel, polished stainless filler cap (Amarok/X-class only)

Options:

• Ladder: CNC cut stringers with checker plate treads. − $527 inc GST
• Ladder extension: Our fold-down ladder extension gives you easy access to your ladder. We have designed it so the rungs align so it is usable when down or up. − $271 inc GST
• Jerry can holder: For single jerry can. 3mm Aluminium. TIG-welded, CNC cut grid pattern and logo. − $213 inc GST
• Double Jerry can holder: For two jerry cans. 3mm aluminium. TIG welded, CNC cut grid pattern and logo. − $347 inc GST
• Spare tyre carrier: 16mm threaded bar with a slotted disk for wheel size adjustment. Supplied with anti-theft clip. 4mm Aluminium cradle to support the weight. − $228 inc GST
• RTT roof rack: 40x40x3 SHS outer frame, 40x6 angle bearers for bolting through. x6 Bolt down 'feet'. − $1,068 inc GST
• Tradesman roof rack: CNC cut rope rail brackets, 25mm round tube rope rails, 40x3 SHS frame and bearers. Removable. − $1,068 inc GST
• 65 Ltr poly tank: Mounted under the canopy. ¼ turn tap mounted on the mudguard, breather. (limits trundle drawer length to 1000mm) − $510 inc GST
• Relocate factory reverse camera from − $189 inc GST
• Relocate parking sensors − $303 inc GST
• Tub removal and disposal − $311 inc GST
• Powder coating: Prices start at − $2,303 inc GST. Contact us for specific pricing.
• 1000mm Trundle drawer lid: Our trundle drawers are fully sealed in their own cavity- the lid is only necessary for those who would like to use the drawer as extra bench space. The lid for our 1000mm drawer hinges at the front and is held open with small gas struts. − $248 inc GST
• 1500mm Trundle drawer lid: Our trundle drawers are fully sealed in their own cavity- the lid is only necessary for those who would like to use the drawer as extra bench space. The lid for our 1500mm drawer hinges from the side and is help open with gas struts. − $309 inc GST
• 12V Panel: An Aluminium bolt-in panel, fixed to the canopies unistrut frame next to the fridge cavity, for mounting 12volt accessories. A 40mm space behind the panel hides any wiring. Approx 700mm x 500mm. − $124 inc GST
• Removable cover over dog cage ventilation: If you'd like the option to seal up the dog cage of your 'Roebuck' canopy, we can supply the door with a recessed flange for attaching a flush 'blanking plate'. −  $302 inc GST
• Dog cage ventilation cover plates: Recessed backing flange fixed to the dog cage door to allow fixing of 3 different cover plates (supplied). − $406 inc GST
  1. Blanking plate.
  2. Ventilation plate - CNC cut slots and Hicat logo.
  3. Ventilation plate - Black perforated sheet (Invisiguard).
• Flashing kit to suit Bushman upright fridge: Flashing kit comprises of a series of bolt-in 3mm aluminium sheet panels that creates a cavity for the fridge to fit neatly into and a plinth for the fridge to sit on at the correct height. Space is allowed to the left of the fridge to fit 12V accessories and a battery. Includes battery tray and panel for mounting 12v accessories. − $558 inc GST
• Central locking upgrade: Whale tail locks x4 - All Black. Wired into vehicle central locking, canopy doors only. − $1,335 inc GST
