HICAT ‘SANDFIRE’ CHASSIS MOUNT

SANDFIRE
$15,024.00
CHECK WITH STORE FOR AVAILABILITY

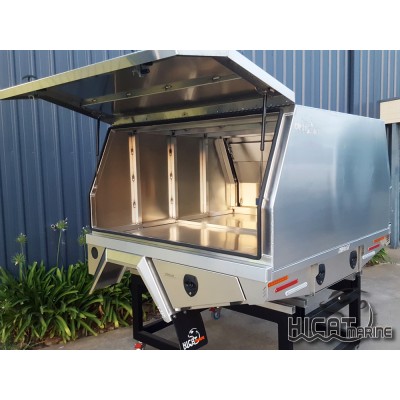

A clean slate. Open inside this canopy is ready for you to customise or use the ‘Unistrut’ internal frame to bolt up some of our standard accessories such as shelves, gun cabinet, travel buddy shelf etc.

Select your Vehicle

Rear Mount Options

Roof Rack Options

Poly Water Tank

Trundle Drawer Lid Options

Installation Options

Tray, Wheel Arch, Trundle & Under Toolbox Installation (7 Hours) $1050.00

Tray Installation with Tub Removal (6.5 Hours) $975.00

Canopy Central Locking Kit Supply and Installation (5 Hours) $1480.00

Camera & Sensor Installation/Relocation (3 Hours) $580.00 inc brackets

Blindspot Monitoring Installation/Relocation (2 Hours) $300.00

Finish Options

Powdercoating Canopy/Tray Solid Texture Black $2500

Powdercoating Canopy/Tray Texture Black/Colour Coded Doors $3500

Painting Canopy/Tray Solid Colour Coded to Vehicle $6500

Total Price Added To Cart

$15,024.00

Quantity

Add to wishlist Add to compare
Description

Standard Features:

  • Made in Australia
  • Chassis: 100x50x5 Channel
  • Bearers: 50x4 SHS
  • Combing Rails: 75x50x4 RHS
  • 3mm 5052 Aluminium canopy
  • Double folded return around the door to create a gutter
  • 40mm Unistrut internal frame
  • Stainless steel piano hinge
  • x2 3mm 5052 Aluminium under tray boxes
  • Pinchweld rubber seal
  • Die-cast aluminium hinges

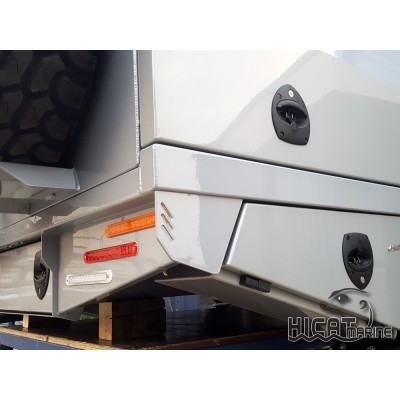

  • Adjustable flared guards
  • T-Handle compression lock. Made in Sweden.
  • Fully enclosed, weatherproof trundle drawer, heavy-duty bearing slides, 1500mm long
  • Fully welded using TIG and Pulse MIG.
  • Modified fuel filler, fabricated from stainless steel, polished stainless filler cap (Amarok/X-class only)

Options:

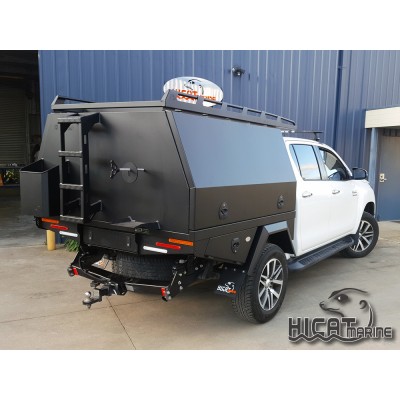

  • Ladder: CNC cut stringers with checker plate treads
  • Ladder extension: Our fold-down ladder extension gives you easy access to your ladder. We have designed it so the rungs align so it is usable when down or up.
  • Jerry can holder: For single jerry can. 3mm Aluminium. TIG-welded, CNC cut grid pattern and logo.
  • Double Jerry can holder: For two jerry cans. 3mm aluminium. TIG welded, CNC cut grid pattern and logo.

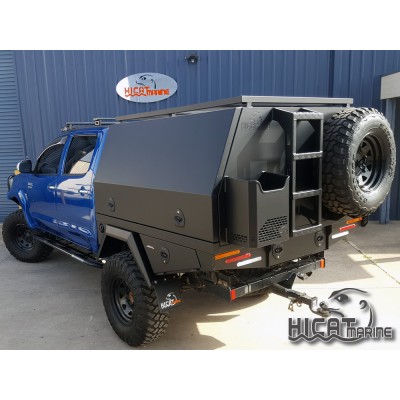

  • Spare tyre carrier: 16mm threaded bar with a slotted disk for wheel size adjustment. Supplied with anti-theft clip. 4mm Aluminium cradle to support the weight.
  • RTT roof rack: 40x40x3 SHS outer frame, 40x6 angle bearers for bolting through. x6 Bolt down 'feet'.
  • Tradesman roof rack: CNC cut rope rail brackets, 25mm round tube rope rails, 40x3 SHS frame and bearers. Removable.
  • 65 Ltr poly tank: Mounted under the canopy. ¼ turn tap mounted on the mudguard, breather. (limits trundle drawer length to 1000mm)
  • Relocate factory reverse camera from
  • Relocate parking sensors
  • Tub removal and disposal
  • Dog Cage: Partitioned dog area. 3rd door with ventilation. Fully welded around the floor. Approx 700mm wide x half-width of the canopy.
  • 1000mm Trundle drawer lid: Our trundle drawers are fully sealed in their own cavity- the lid is only necessary for those who would like to use the drawer as extra bench space. The lid for our 1000mm drawer hinges at the front and is held open with small gas struts.
  • 1500mm Trundle drawer lid: Our trundle drawers are fully sealed in their own cavity- the lid is only necessary for those who would like to use the drawer as extra bench space. The lid for our 1500mm drawer hinges from the side and is help open with gas struts.
  • 12V Panel: An Aluminium bolt-in panel, fixed to the canopies unistrut frame next to the fridge cavity, for mounting 12volt accessories. A 40mm space behind the panel hides any wiring. Approx 700mm x 500mm
  • Central locking upgrade: Whale tail locks x4 - All Black. Wired into vehicle central locking, Canopy doors only.
HiCat Trays/Canopies
Weight
65
Product Type
Trays & Service Bodies
