Touring Solutions Australia 4,200kg GVM Upgrade (Nissan Y62 Patrol)

TSAY62GVM4200
$9,955.00
CHECK WITH STORE FOR AVAILABILITY

The Patrol only has a factory payload of 742kg, so if you're intending to build a touring 4wd or tow a heavy caravan, you're going to bust past your carry capacity pretty quickly. Four adults, the ball weight of the van, and a full tank of fuel will pretty well tip you over your payload, so it's worth considering a GVM upgrade if you're doing anything serious to your Patrol. With multiple GVMs available, all running our upgraded Lower Control Arm, you'll travel happy knowing your suspension is properly equipped to carry the load and you're legally compliant.

REQUIRES 1275KG WHEELS & TYRES MINIMUM NOT INCLUDED IN PRICE

TSA Front Upper Arms

TSA Front Springs

TSA Rear Springs

TSA Airbag Kit

Installation Options

HBMC Flush and Bleed (Y62 Patrol Only) $700.00 (2 Hours) Includes Fresh HBMC Fluid

Post Rego GVM Compliance SA Only $895.00 (Engineering Fee Only)

Fit My 4WD In House Wheel Alignment $145.00 (1 Hour)

Touring Solutions Australia GVM & Lift Kit Installation (12 Hours) $1800.00

Total Price Added To Cart

$9,955.00

Quantity

Add to wishlist Add to compare
Description

Increase your payload to 1,425kg and retain 3.5t towing pre-registration.

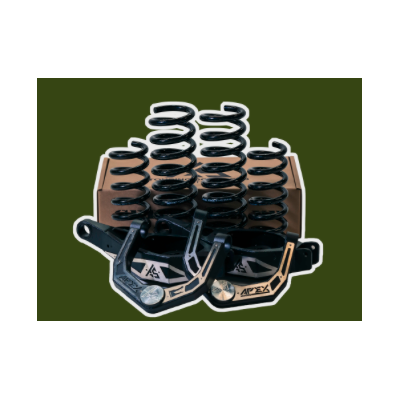

INCLUSIONS

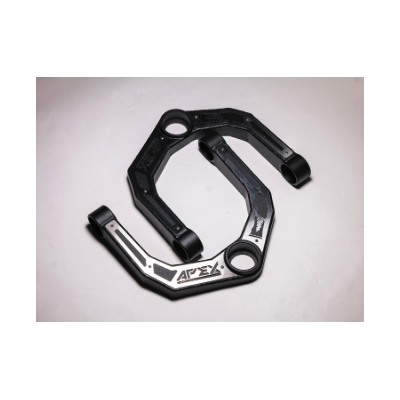

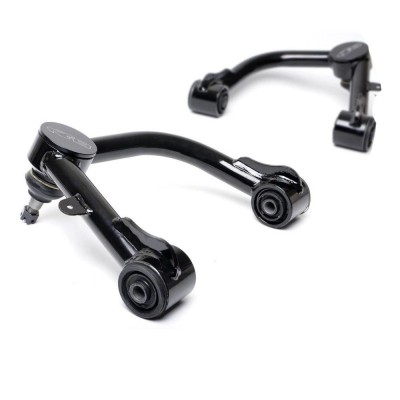

  • Black Hawk Upper Control Arms
  • EFS 2" Front Coil Springs
  • EFS 2" Rear Coil Springs

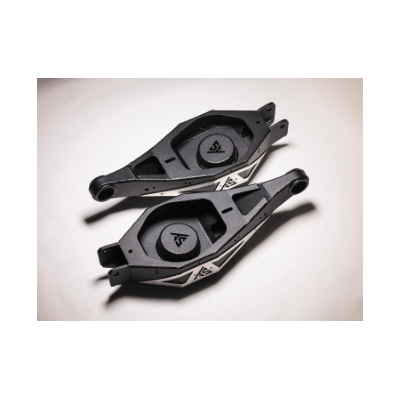

  • Apex Lower Control Arms
  • PollyTuff Spring Seat Kit
  • PollyTuff Bush Kit
  • TSA Control Arm Bolt Kit
  • Airbag Man Air Suspension Helper Kit
  • Cat 6 Indicators

MORE INFO+

• Rear spring options: 200kg, 400kg.

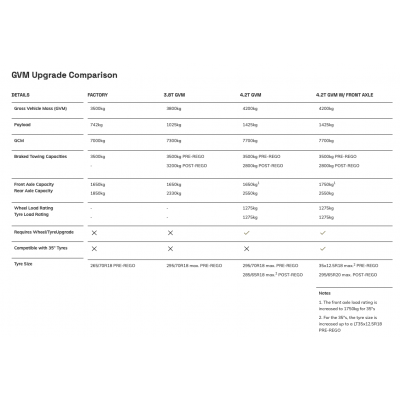

• The GVM has been increased to 4200 kg. For pre-registration GVM, the max towing capacity remains 3500kg. Post-registration GVM reduces towing capacity to 2800kg, when the vehicle is loaded to full 4200 GVM. The axle load ratings are: Front axle capacity = 1750kg; Rear axle capacity = 2550kg.

• A wheel and tyre package is required to support the increased GVM. The new max tyre size becomes 285/70R18. Rims and tyre MUST be load rated to be compliant with GVM upgrade. OEM Factory Rim DO NOT have a documented load rating therefore cannot support the increased GVM. Minimum tyre and rim rating 1275kg.

• Variants have the option to reduce from factory fitted 7 or 8 seats down to 5 seats. This modification consists of removing the seats and seatbelts in the final row only. Category calculations included to show that the 5,7 and 8 seat options still have enough payload to be a goods carrying NB1 vehicle. Average reference mass = 2936kg.

• These variants include Ti (mid) and Ti-L (upper).
