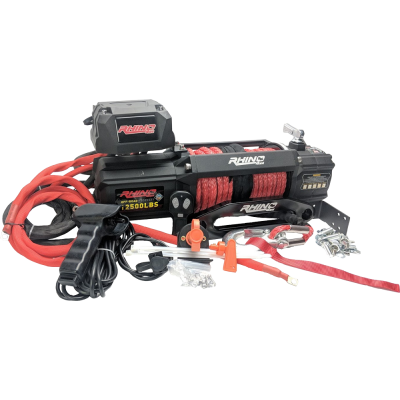

NEED A WINCH.... LOOK NO FURTHER
With all the included features, great price and added looks its hard to go past a rhino winch.
-Tough heavy duty materials
-12000 lbs
-Dyneema rope
-wired and integrated wireless remote control
-Free battery isolator switch with key
-Power cables pre insulated to save you time and money during install
-Standard with remote control plug in extension cable enabling easy remote mounting of box.
-Internal braking system
-Robust gearing
-IP68 rated to ensure no dust and water ingress
-Multifold mounting options including vertical over tie rod, and over motor.
-Backed by our Huge 3 year warranty
| Specifications | |
| Rated line pull: | 12000 Lbs (5670kgs) single line. |
| Motor: | Series wound 6.0 hp /4.4kw,12V DC |
| Gear Train: | 3 stage planetary |
| Gear ratio: | 265:1 |
| Clutch: | Sliding Ring gear |
| Braking action: | Automatic in drum |
| Fairlead: | Aluminum hawse fairlead for synthetic rope |
| Synthetic rope: | Ø9.5mmX25m |
| Drum size: | 2.5"×9.0"(63mm×224mm) |
| Dimensions: | 545mm×160mm×195mm |
| Mounting bolt pattern: |
10"×4.5"(254mm×114.3mm) |
| Battery: | 650 CCA minimum for winching 25 square mm,72"(1.83m) |
| N.W: | 27kgs |
| Packing: | 620mm×360mm×260mm |
 |
